SurePoint 500-02-2403: Retrofit Kit, PR30 Orion 3 DN17, 1.45 - 58 GPM

$1,366.53
$1,366.53
Shipping calculated at checkout.

Retrofit Kit, PR30 Orion 3 DN17, 1.45 - 58 GPM

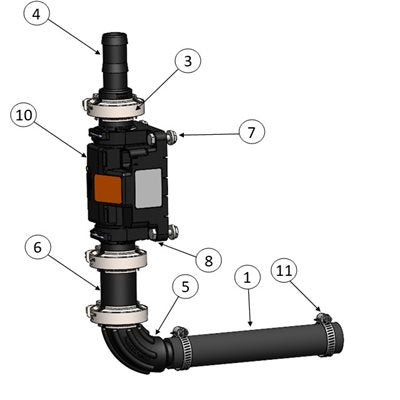

Pic 2 Table

Item No.  Part Number & Description QTY.
 1  280-100-AG200 1" AG200 Bulk  8IN
 2  105-100G-H 1" EPDM Manifold Gasket  3
 3  105-FC100 1" Manifold Clamp  3
 4  105-100BRB 1" Manifold x 1" HB  1
 5  105-100BRBSWP90 1" Manifold x 1" HB - 90 Degree Sweep  1
 6  105-100CPG 1" Manifold Coupling  1
 7  323-04-SS 1/4" Flange Nut - SS  4
 8  300-040100-SS 1/4" x 1" Hex Head Bolt -SS  4
 9  201-5954Y1 Adapter Cable - 3-Pin Amp Superseal to 6-Pin Deutsch Orion 3 (EMag Flowmeter)  1
 10  204-01-462034A-DN17 EMag Flowmeter, Orion 3, 1.45 - 58 GPM, M100 Flange  1
 11  350-1608 SS Hose Clamp - Size 16 - 1-1/2" Diameter (fits 1" AG200)  2

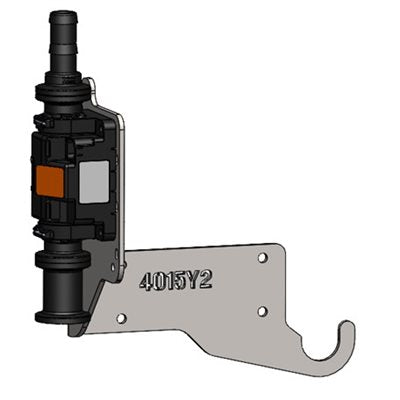

Pic 3 Table

Item No.  Part Number & Description QTY.
 1  204-01-462034A-DN17 EMag Flowmeter, Orion 3, 1.45 - 58 GPM, M100 Flange  1
 2  120-M100T3M M100 to T3M for DN17 Meter  2
 3  124-01-G11058-V O-Ring, Viton, T3 Fork Fittings  2
 4  124-02-010003 T3 fork  2
 5  398-20-6856Y1  1
