Sprayer Wiring Kit - Full-Size Gators

  • Sprayer Wiring Kit - Full-Size Gators
$259.99
$259.99
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

This Sprayer Wiring Kit provides plug-and-go functionality for customers with Full-Size Crossover Gator UTVs with Deluxe cargo boxes and compatible Gator sprayers. Instead of connecting a sprayers wiring directly to the battery, this kit utilizes the vehicles pre-installed wiring for a cleaner initial installation and simplified routine attachment afterwards.

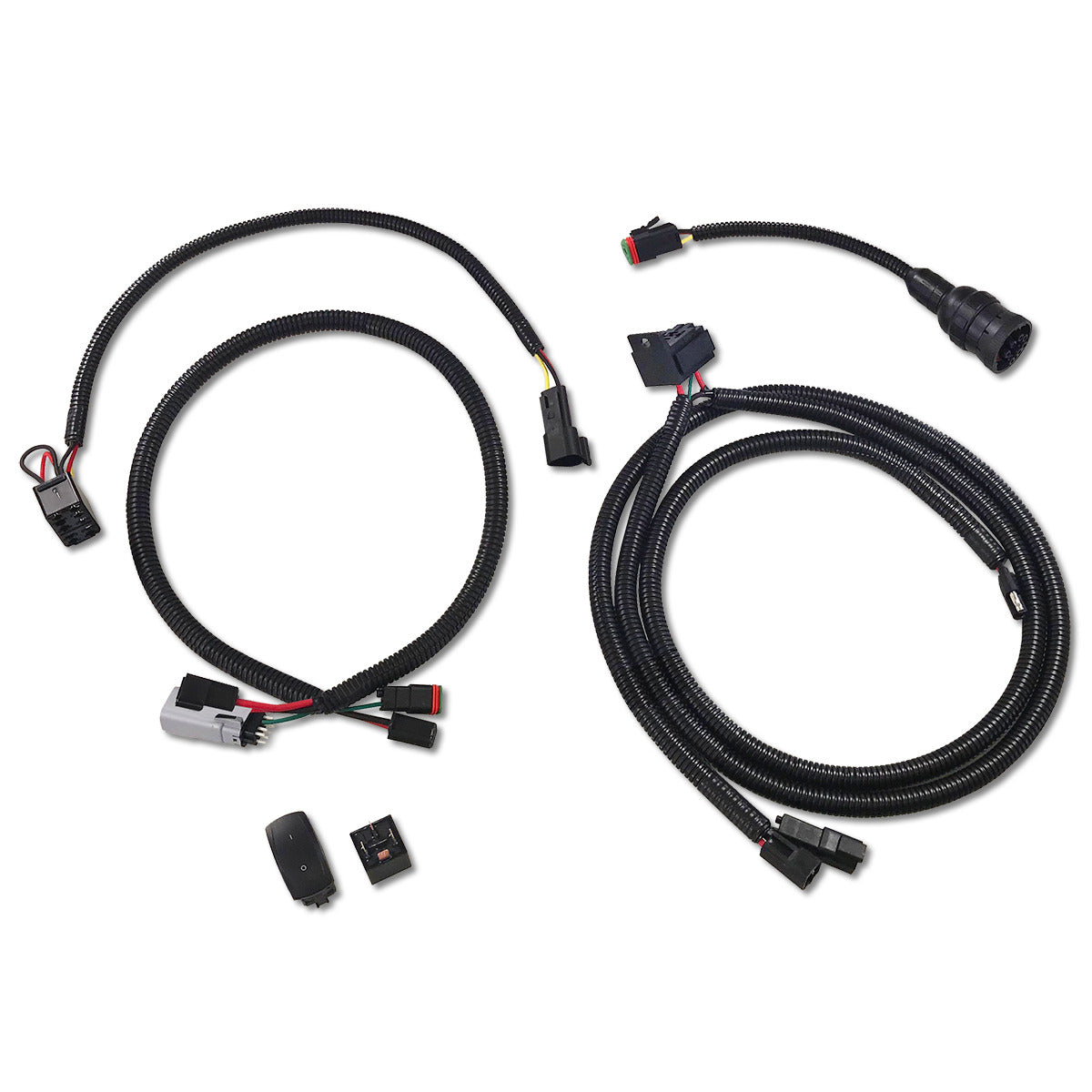

Included with each kit are four harnesses. Two (the Upper and Lower Harnesses) are for the on/off rocker switch, which can be installed in one of the blank switch plates on the vehicles dash. The Chassis Harness runs along the rear of the chassis, extending power and data ports to the back corner of the vehicle. Lastly, the Sprayer Harness connects to the Chassis Harness and runs to the sprayer pump, providing a clean and tidy wiring solution.


Key Features
  • Plug-and-go compatibility - by utilizing the vehicles pre-installed wiring instead of connecting directly to the battery
  • Convenient dash-mounted switch - puts on and off control of a sprayer within short reach

LP68195 Compatibility Table
Gator Series Compatible Models
Full-Size Crossover XUVs
(2018-Present)
XUV835E, XUV835M, XUV835R
XUV865E, XUV865M, XUV865R
Sprayers
25-gal. Gator Sprayer (LP33597)
45-gal. Gator Sprayer (LP20852)
45-gal. Deluxe Gator Sprayer (LP22908)
90-gal. Deluxe Gator Sprayer (LP48006)


Includes
  • Upper Dash Harness
  • Lower Dash Harness
  • Rocker Switch (On/Off)
  • Rocker Switch Sticker
  • Chassis Harness
  • Sprayer Harness
  • Hardware (includes zip ties and wire harness clips)
  • Installation Instructions
Required John Deere Parts
  • E-Spec Full-Size Gators (XUV835E & XUV865E) - Dash Port Attachment Harness (BM26268) and E-Spec Attachment Harness (MY18-20: BM26266) (MY21+ BUC10810)
  • M-Spec Full-Size Gators (XUV835M & XUV865M) - Dash Port Attachment Harness (BM26268)
  • R-Spec Full-Size Gators (XUV835R & XUV865R) - Dash Port Attachment Harness (BM26268)

LP68195
