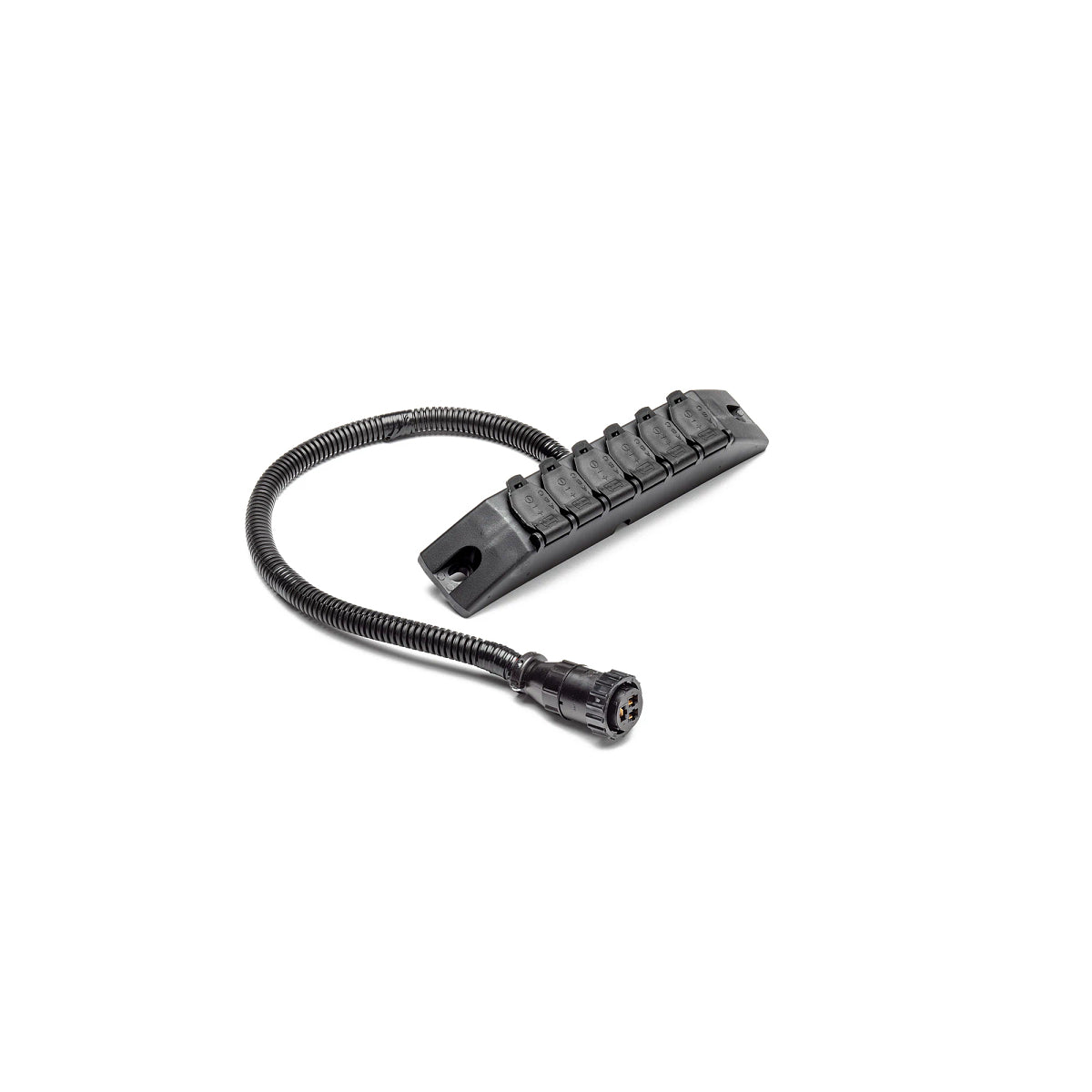

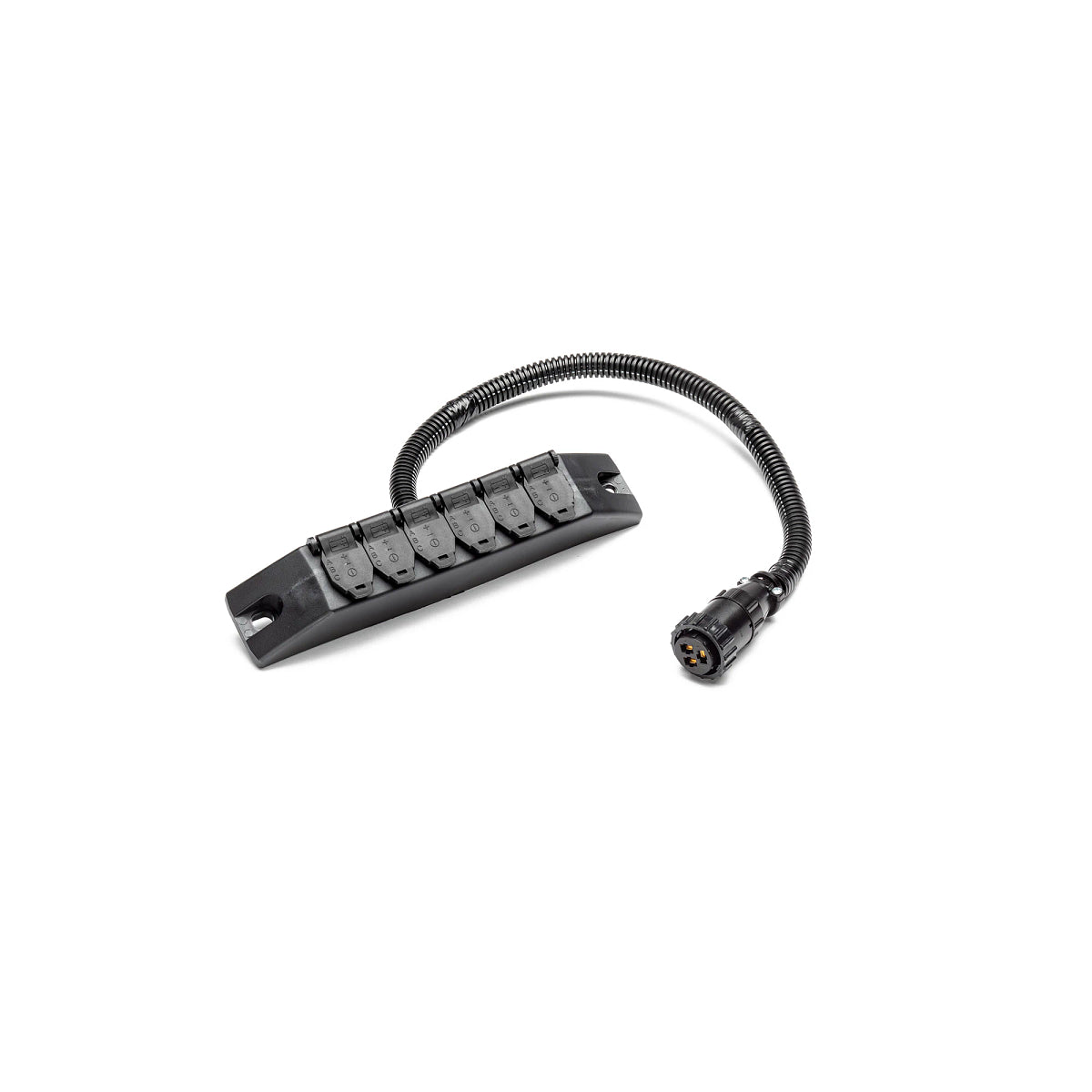

John Deere RE596958: Power Strip Wiring Harness

The six-outlet octagonal power strip with pre-installed round convenience outlet is available for field installation for operators that prefer this traditional connection style.
Supports up to 30 amps of power from the existing, shared 30-amp fused power circuit of the cab.
Provides operators with the same connection in the cab to power equipment they may already have or share with other machines over several generations.
Approved for mounting to R558980 (headliner mounting rail), BRE10574 (right-side window mounting bracket and rail), or BRE10575 (short vertical mounting rail). John Deere recommends using the following mounting hardware with the previous mounting options: two 21M7577 screws, two options R77391 washers, and two 14M7303 flanged nuts. Compatible with 7R (serial number 110101- ), 8R (serial number 170001- ), 8RT (serial number 924001- ), 8RX (serial number 801001- ), 9R (serial number 075061- ), 9RT (serial number 925011- ), and 9RX (serial number 820001- ).
Product Dimensions
Weight
0.611 lb
Height
3 in
Width
9.1 in
Length
11.2 in

Model Compatibility:
7R 210
7R 230
7R 250
7R 270
7R 290
7R 310
7R 330
7R 350
7R SERIES PRECISION UPGRADES
8R 230
8R 250
8R 280
8R 310
8R 340
8R 370
8R 410
8RT 310
8RT 340
8RT 370
8RT 410
8RX 310
8RX 340
8RX 370
8RX 410
9R 390
9R 440
9R 490
9R 490 SCRAPER
9R 540
9R 540 SCRAPER
9R 590
9R 590 SCRAPER
9R 640
9R 640 SCRAPER
9RT 470
9RT 470 SCRAPER
9RT 490
9RT 490 SCRAPER
9RT 520
9RT 520 SCRAPER
9RT 540
9RT 540 SCRAPER
9RT 570
9RT 570 SCRAPER
9RT 590
9RT 590 SCRAPER
9RX 490
9RX 490 SCRAPER
9RX 540
9RX 540 SCRAPER
9RX 590
9RX 590 SCRAPER
9RX 640
9RX 710
9RX 710 SCRAPER
9RX 770
9RX 770 SCRAPER
9RX 830
Additional models may not be listed.
