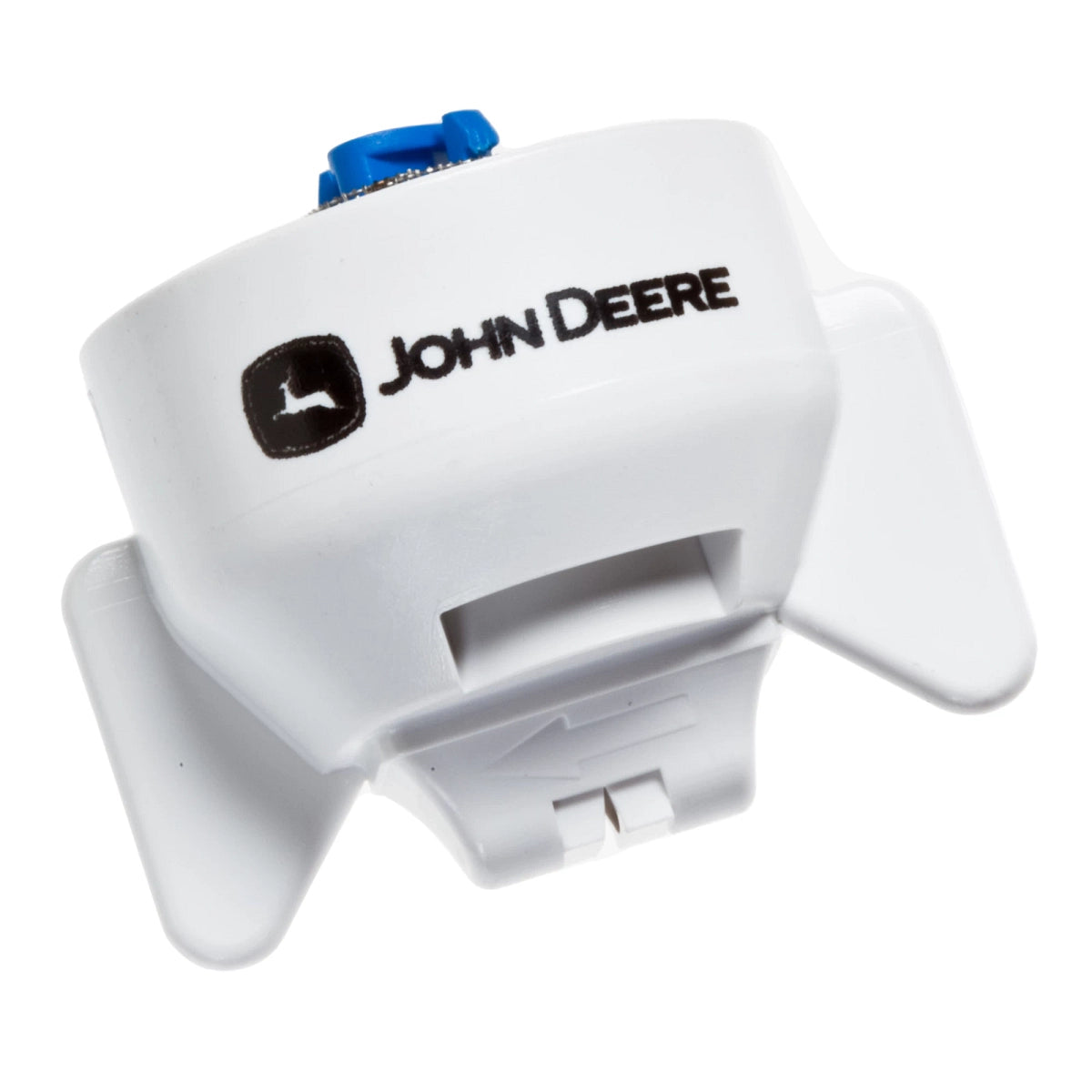

John Deere PSLDXQ2008: Guardian (LDX) 120 Degree Spray Angle Nozzle, 0.8 GPM, 3.2 LPM, Tip Size 08

Unique 120 inclined spray pattern: This allows users to aim the spray rearward for general spraying, forward for vertical targets, or alternate nozzles to create a twin spray
Pre-orifice design: This design enables larger droplets than conventional flat fan nozzles, which can help reduce drift and improve application accuracy
Quick-change nozzle assembly: The assembly includes a tip and cap (one piece), gasket, and integrated strainer for sizes 01-08, including 015 and 025. This makes it easy to install and maintain the nozzles
ExactApply System Compatibility: Compatible with 15-Hz pulsing (aligned incline), 30-Hz pulsing (aligned or alternating incline), AutoSelect A/B, and Conventional systems
Includes: PM200040-1 - Cap Gasket (EPDM), PM200040V1 - Cap Gasket (Viton)

Product Dimensions
Weight
0.033 lb
Height
1.25 in
Width
1.58 in
Length
1.7 in
