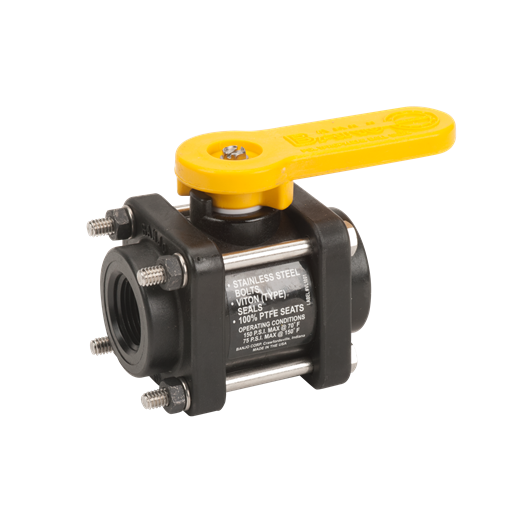

Banjo V075: 3/4" Full Port Valve

Specifications
Videos
Family: Valves
Type: Bolted
Style: 4 Bolt
Size: ¾"
Weight 0.417 lbs

Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
FKM seals.
Polypropylene is reinforced with fiberglass for additional strength.
Precision molded in polypropylene.
PTFE self-lubricating stem bush­:ings and seats cannot stick or bind.
Self-aligning ball moves freely against the PTFE seats for smoothoperation.
Stainless steel bolts.
Valve opens and closes with very little pressure on the handle.
Maximum operating pressure 225 psi
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
FKM seals.
Precision molded polypropylene is reinforced with fiberglass for additional strength.
PTFE self-lubricating stem bush­:ings and seats cannot stick or bind.
Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure onthe handle.
Stainless steel bolts.
Maximum 300 PSI

Carrico Part Number: PMV075
