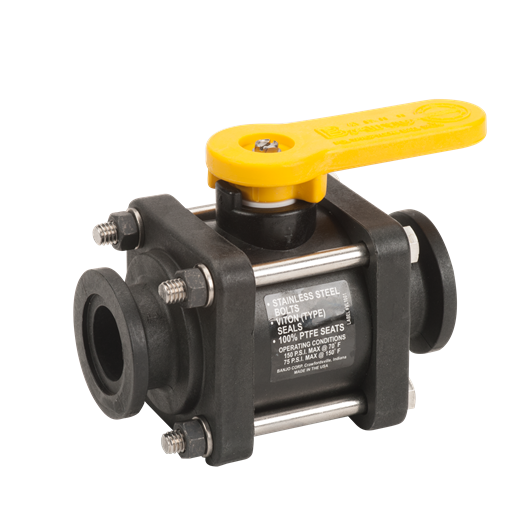

Banjo MV100CF: 1" Full Port Manifold Valve

Specifications
Videos
Family: Manifold Flange Connections
Type: Valves
Style: Bolted
Size: 1"
Weight 0.701 lbs

Precision molded polypropylene is reinforced with fiberglass for additional strength.
Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
PTFE self-lubricating stem bushings and seats cannot stick or bind.
Stainless steel bolts.
Maximum operating pressure 150 psi
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
FKM seals.
Precision molded in polypropylene. Polypropylene is reinforced with fiberglass for additional strength.
PTFE self-lubricating stem bush­:ings and seats cannot stick or bind.
Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure on the handle.
Stainless steel bolts.
Maximum operating pressure 300 psi

Carrico Part Number: PMMV100CF
