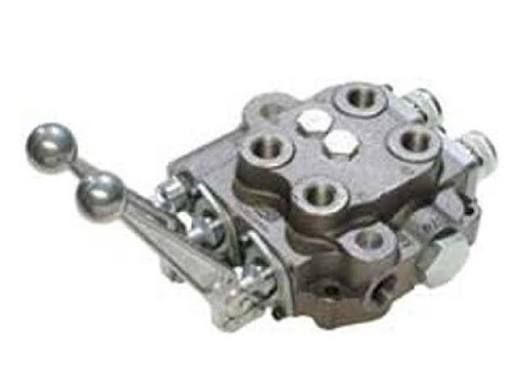

Cross Mfg BA222AAD5EAO: Double Spool Valve Closed Centered

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1, 2 or 3 spool versions with float available. The SBA series features NPTF ports and the SBA-ORB has SAE (ORB) ports. The SBS series has 12-volt solenoid (3-position, 4-way). Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

• 2500 psi operating pressure for SBA

• 3000 psi operating pressure for SBS & SBA-ORB
  30 GPM flow rate

• SBA: 3/4” NPTF in and out, 1/2” NPTF work ports

• SBA-ORB & SBS: SAE ports, 1 1/16-12 in & out, 3/4-16 work

• Adjustable built-in relief set at 2000 psi

• Spring centered, open and closed center available

• Built-in load checks for lifting
