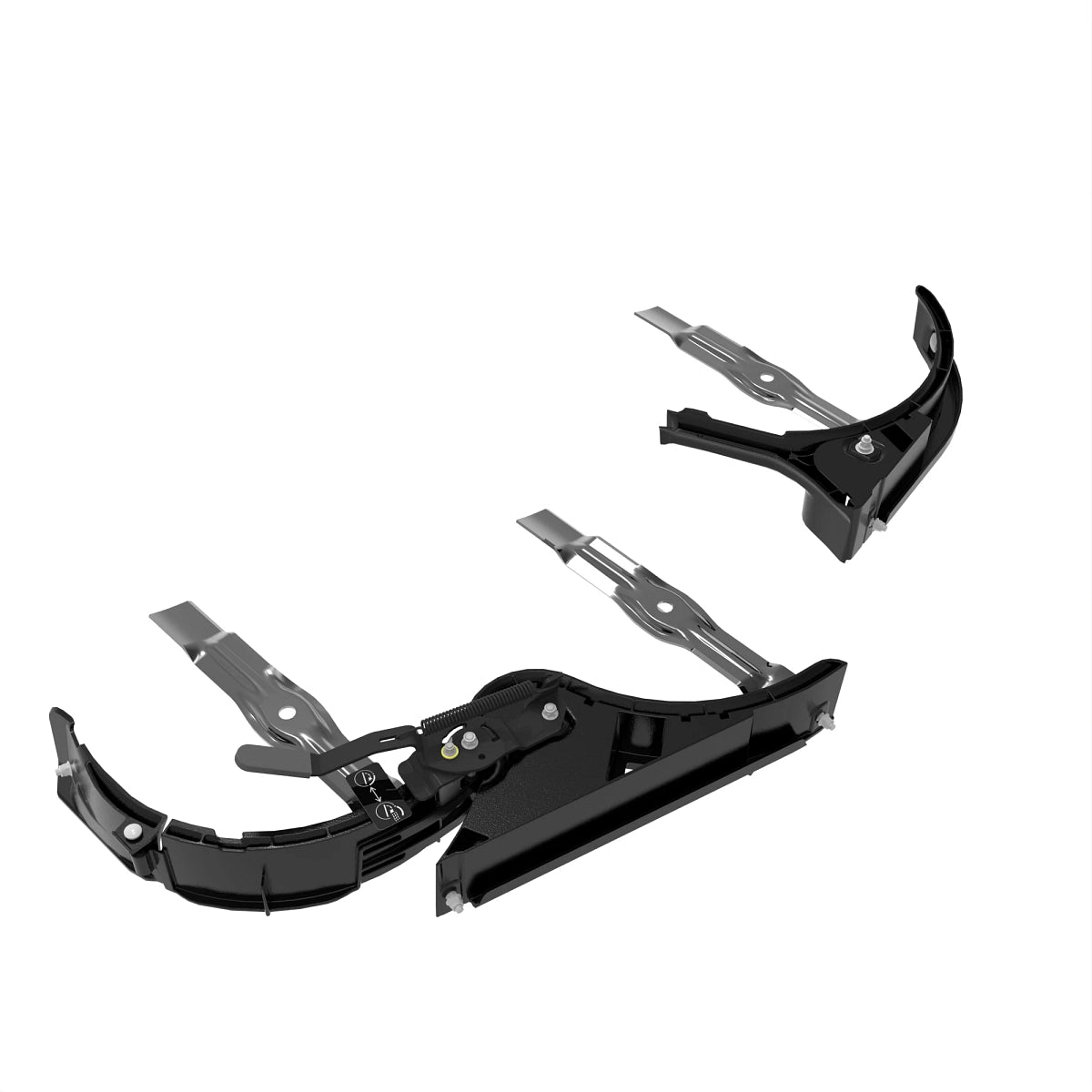

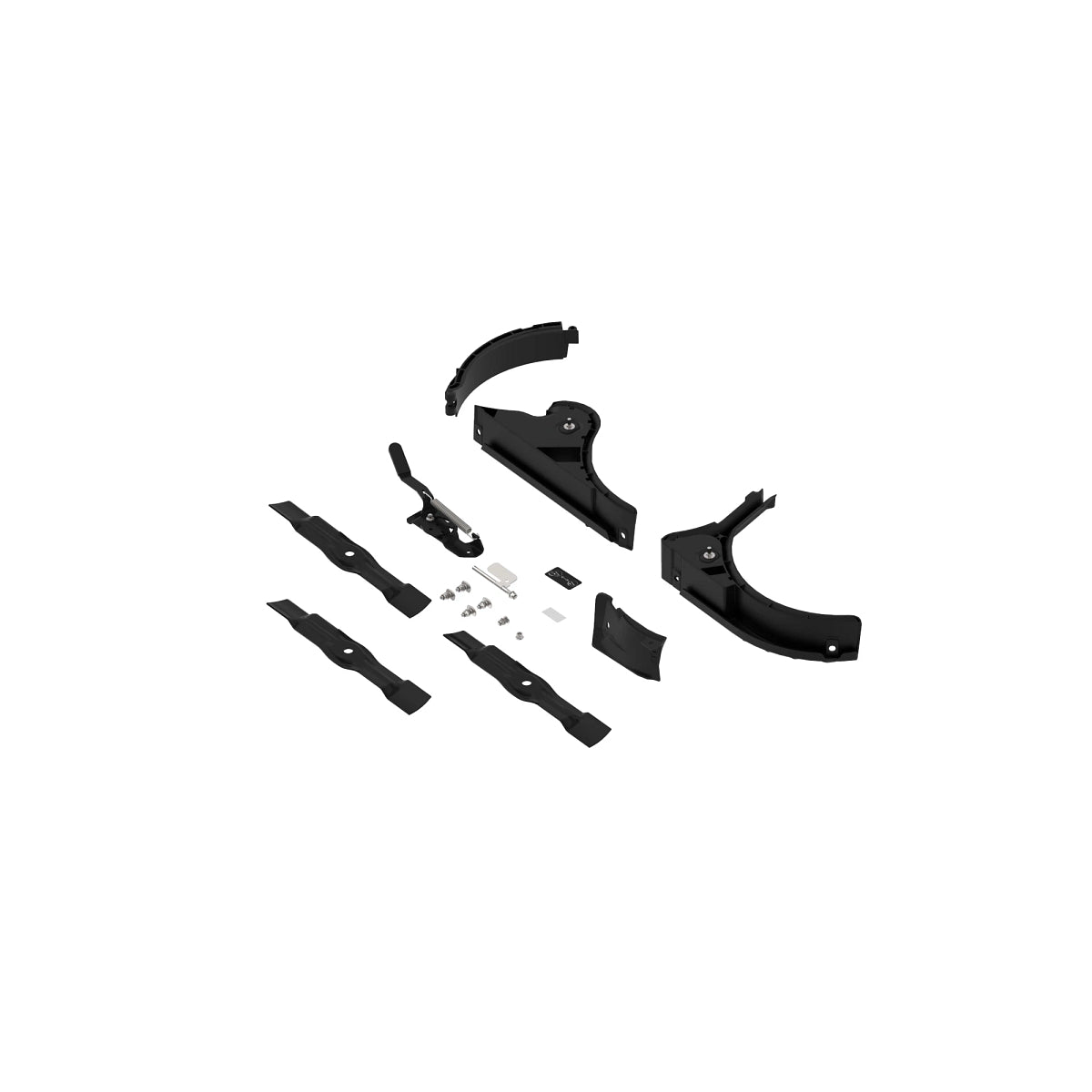

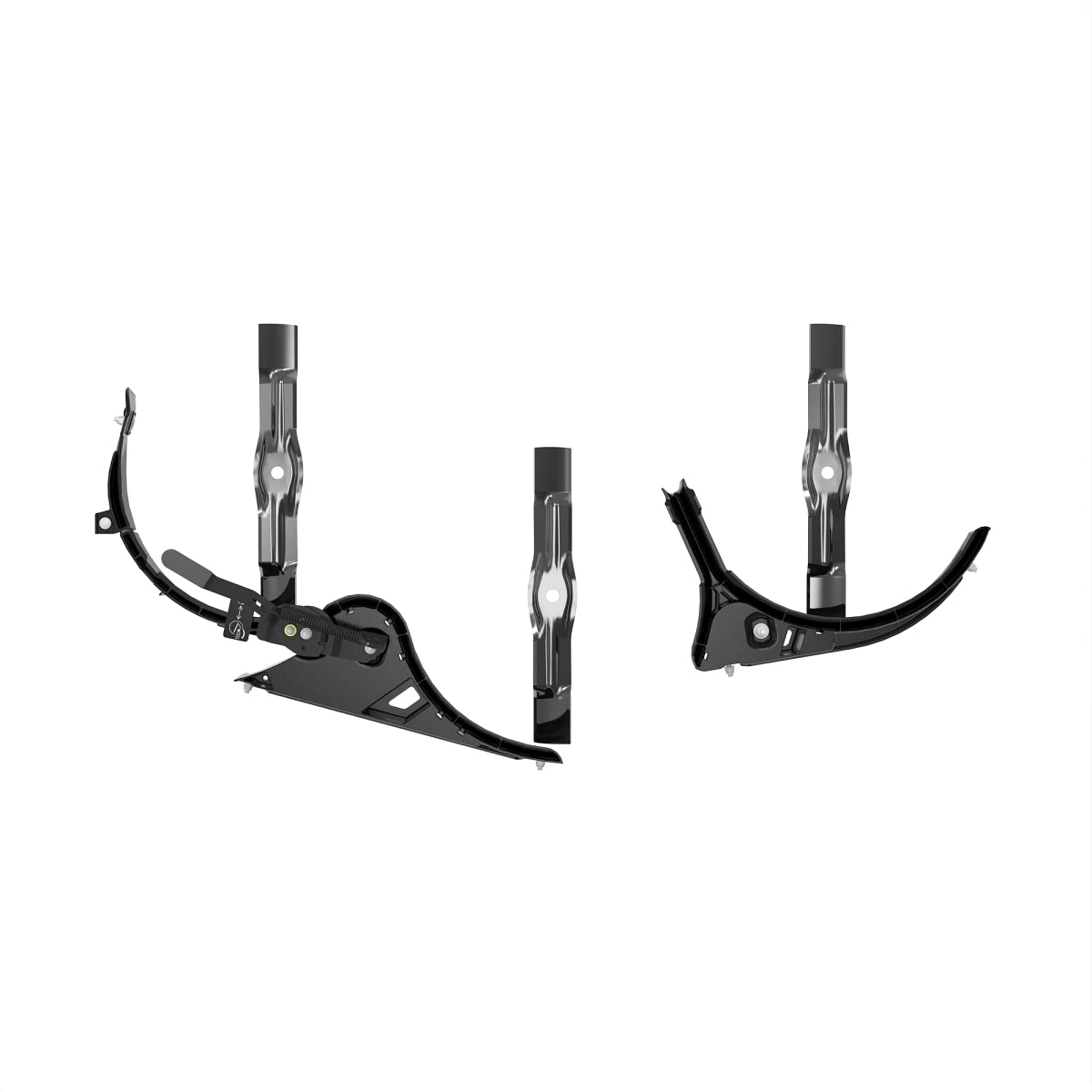

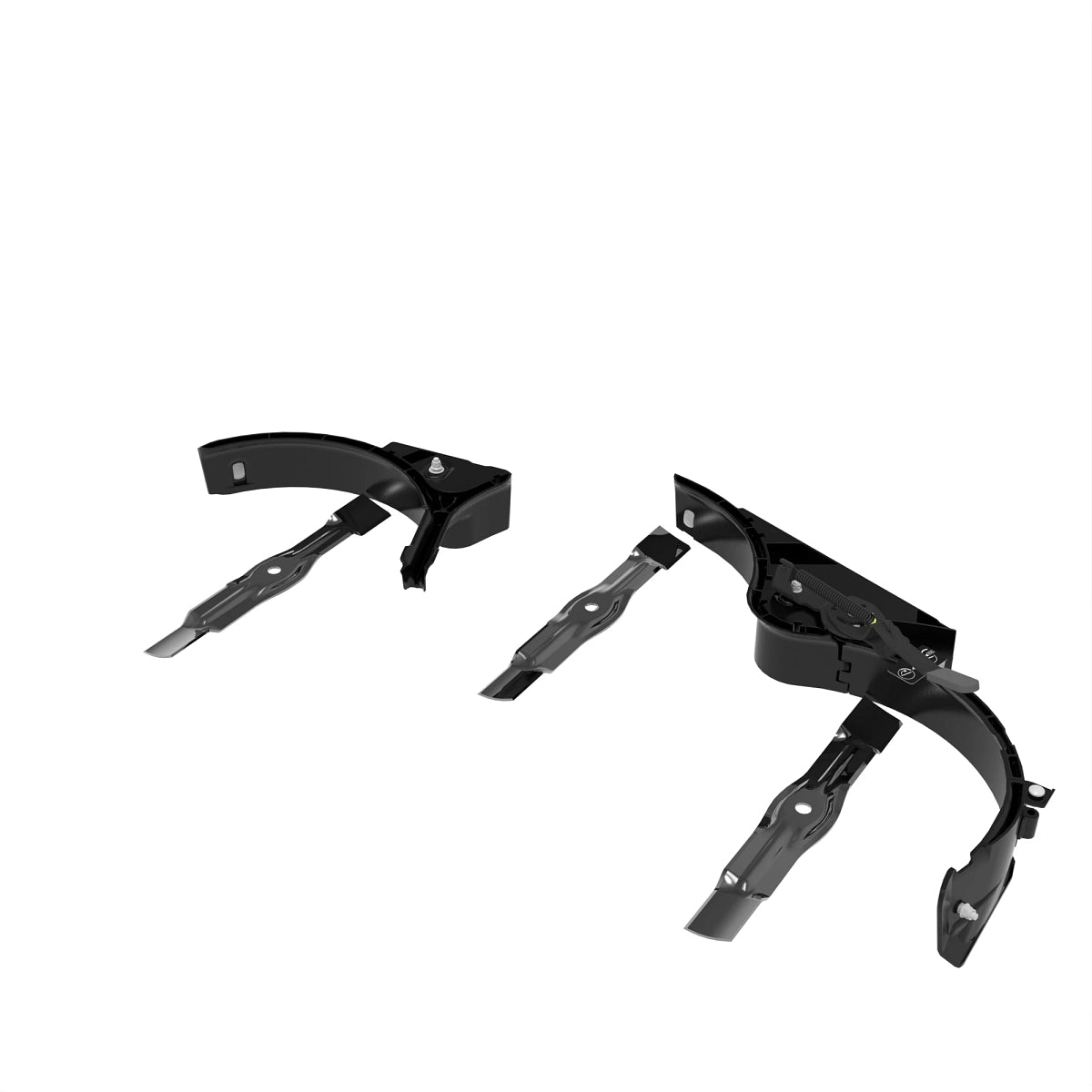

The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck. The MulchControl handle is on top of the mower deck and is used to open and close the MulchControl baffle.
When the MulchControl baffle is open, most of the material flows freely out of the discharge deflector or into a material collection system.
When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.
While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged
When bagging with MulchControl, the MulchControl baffle can be opened or closed with the Power Flow blower installed. The Power Flow blower runs without material when the baffle is closed.
Product Dimensions
Weight
14.971 lb
Height
7.5 in
Width
13.5 in
Length
29.25 in
Volume
12.605 gal
Model Compatibility:
X380
X384
X390
X570
X580
X584
X590
Z325E
Z330M
Z330R
Z375R
Z380R ELECTRIC
Z515E
Z525E
Z530M
Z535M
Z540M
