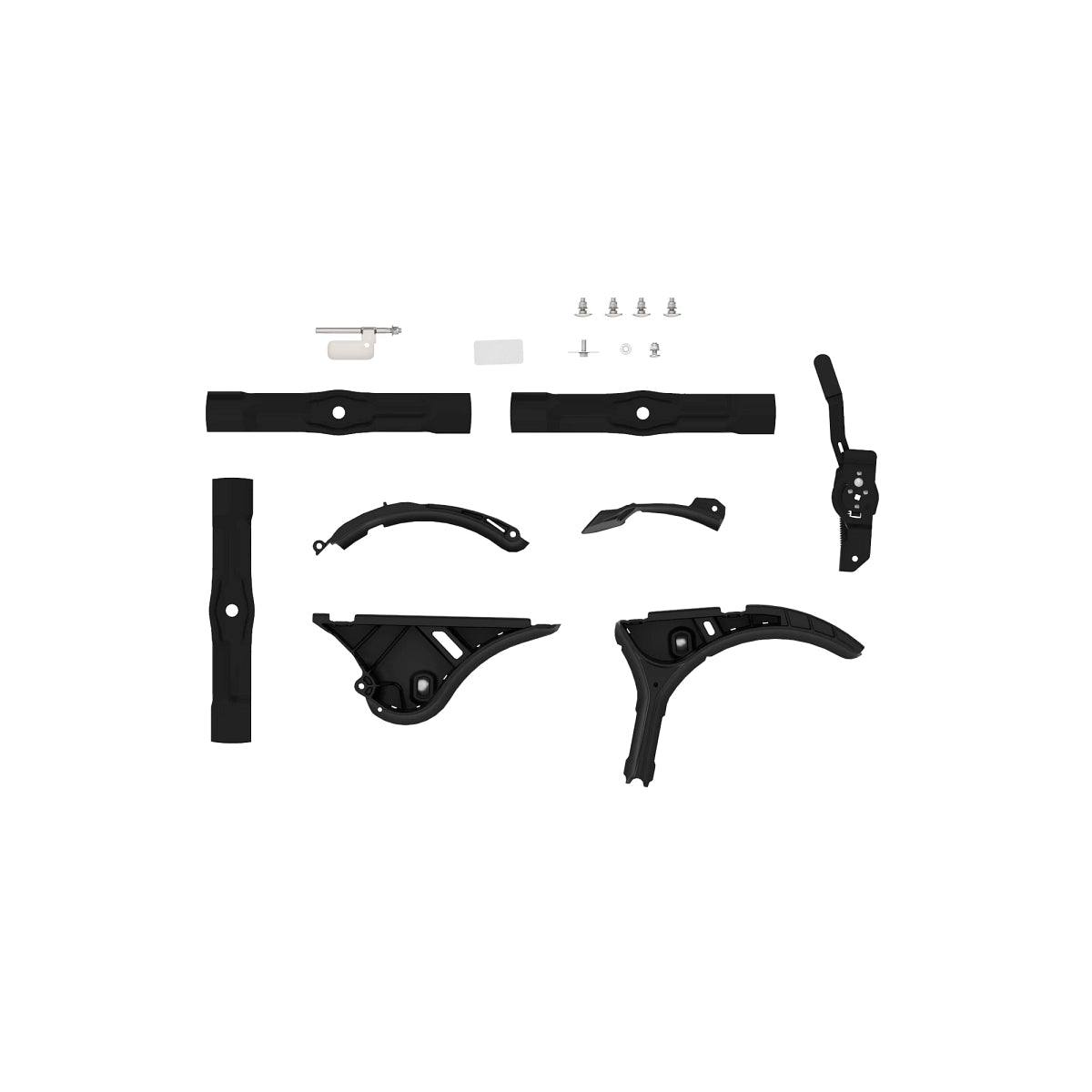

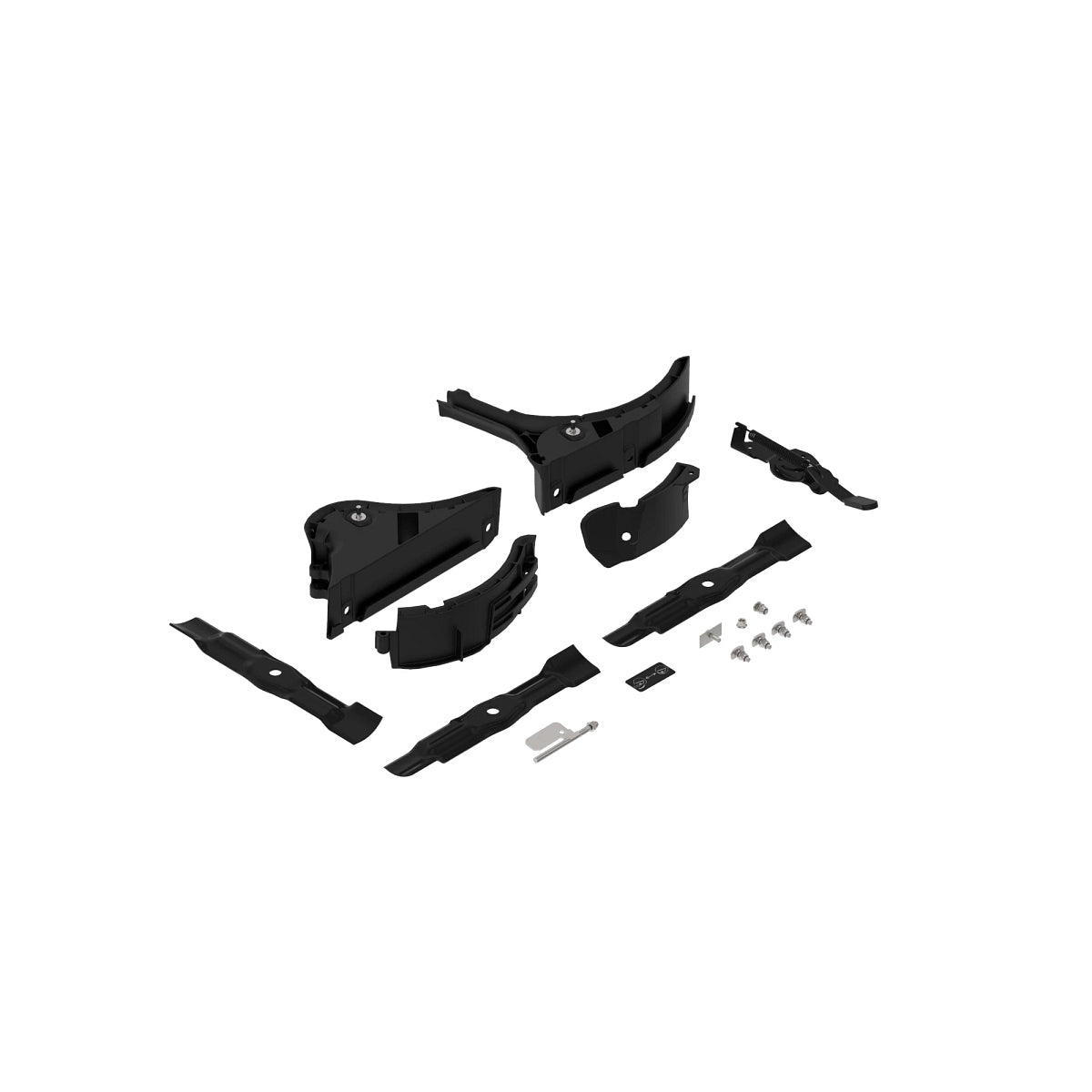

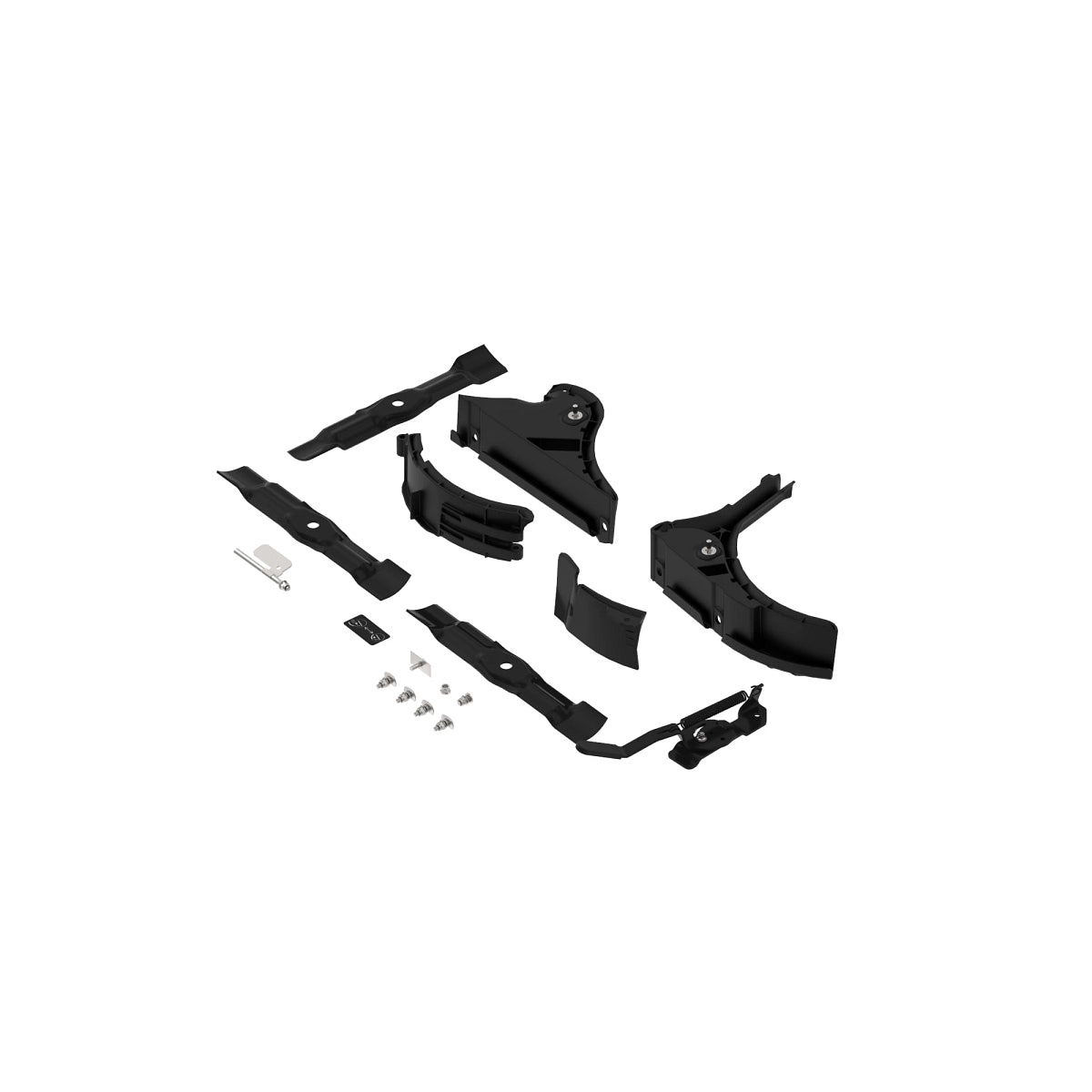

The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck. The MulchControl handle is on top of the mower deck and is used to open and close the MulchControl baffle.
When the MulchControl baffle is open, most of the material flows freely out of the discharge deflector or into a material collection system.
When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.
While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged
When bagging with MulchControl, the MulchControl baffle can be opened or closed with the Power Flow blower installed. The Power Flow blower runs without material when the baffle is closed.
Product Dimensions
Weight
13.328 lb
Height
6 in
Width
13 in
Length
21.2 in
Volume
12.478 gal
Model Compatibility:
S240
X330
X350
X370
X380
X384
X390
X394
X570
X580
X584
X590
X710
X730
X734
X738
X739
X750
X754
X758
X940
X948
X949
Z325E
Z330M
Z330R
Z355E
Z355R
Z365R
Z515E
Z525E
Z530M
Z535M
Z540M
Additional models may not be listed.
