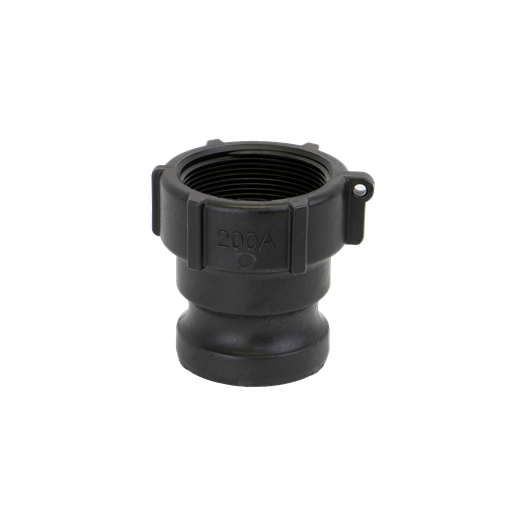

Banjo V10153A: 2" Male Adapter X 2" Female Thread Poly Cam Lever Coupling
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Specifications
Family: Cam Lever Couplings
Type: Part A
Style: Polypropylene
Size: 2"
Weight 0.295 lbs
Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
FKM seals.
Precision molded polypropylene is reinforced with fiberglass for additional strength.
PTFE self-lubricating stem bushÂ:ings and seats cannot stick or bind.
Self-aligning ball moves freely against the PTFE seats for smooth operation. The valve opens and closes with very little pressure onthe handle.
Stainless steel bolts.
Maximum 225 PSI
Complete series of ½", ¾", 1", 1¼", 1½", 2", 3" and 4" NPT thread.
Durable: Polypropylene is glass filled for rugged strength and durability.
Economical and superior in performance.
Most complete line of polypropylene couplings available.
Maximum operating pressure 225 psi
Precision molded: insures: uniform and accurate fit.
Smooth operating: finger rings are designed for easy opening of cam levers.
Stainless steel rings, arms: pins.
Versatile: interchangeable with all types of cam lever couplers.
WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
Carrico Part Number: PMV10153A
