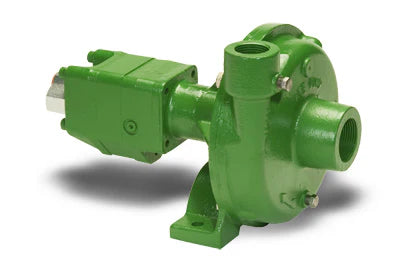

Ace 014-FMCHYD204 Hydraulic Driven Centrifugal Pump

  • Ace 014-FMCHYD204 Hydraulic Driven Centrifugal Pump
$1,212.88
$1,212.88
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

1 1/4" Inlet x 1" discharge

Recommended for JD Pressure Compensating Closed Center Systems and Open Center Systems with capacities from 4-13 GPM.

  • MOUNTING VERSATILITY: The location of the pump is not tied to the PTO or engine drive shaft; the pump can be mounted in a variety of locations to suit application requirements.
    •  CUSTOMIZED PERFORMANCE: The performance is dependent on the supply of hydraulic oil to the motor and not necessarily tied to engine speed. A hydraulic driven pump can produce higher pressures than PTO or belt driven pumps. They can also hold constant pressure at varying engine speeds on closed center hydraulic systems.

    • EASY MAINTENANCE: On a hydraulic driven pump there are no belts to align or break. Separate pump and hydraulic motor shafts simplify repair and replacement. Two main pump bearings support shaft loads. All pumps are equipped with easily replaceable Viton mechanical seals.

    • The farm industry standard since 1969.

    • The 204 motor requires 4 GPM(15.1 LPM) maximum hydraulic fluid input.

Recommended for:

    • Pressure Compensating Closed Center Systems
    • Open Center Systems up to 13 GPM using internal needle valve bypass
